Scope and characteristics of use

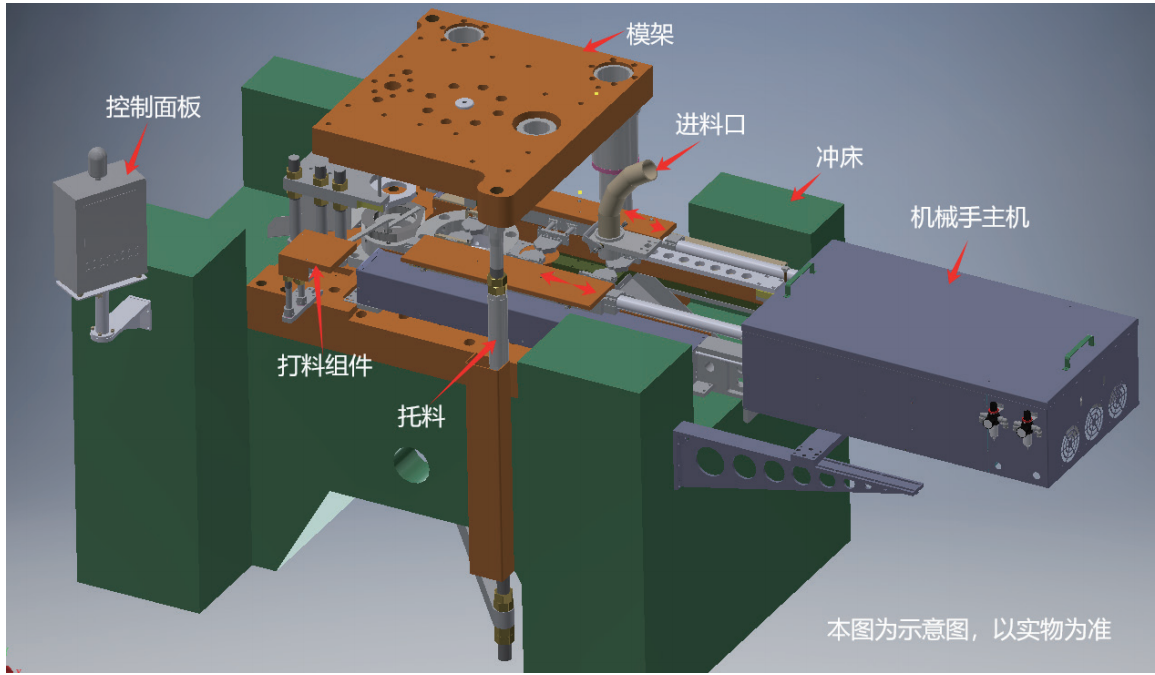

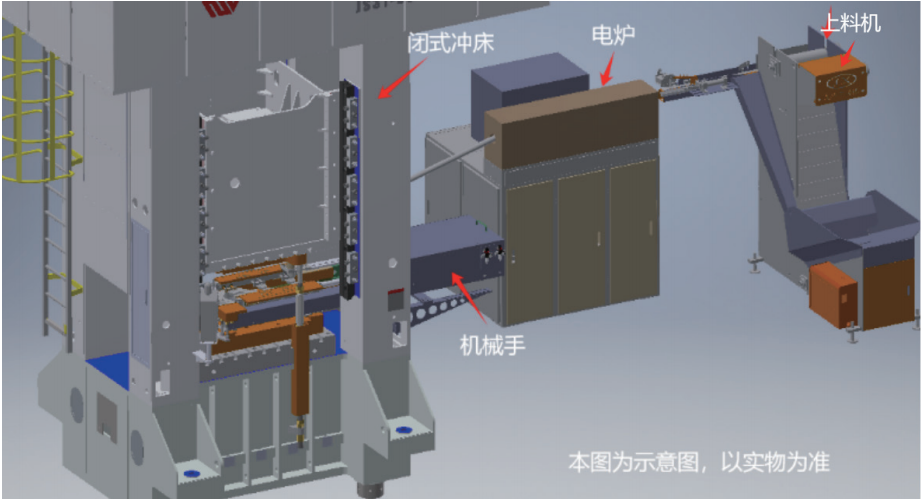

1. The use of BTQ series multi station hot forging CNC robotic arm is a specially customized closed pneumatic punching machine. Non customized punching machines can be modified according to the situation. This model of robotic arm cannot be used on mechanical punching machines or open punching machines.

2. The BTQ series multi station hot forging CNC robotic arm is a single host (or single head), which can be equipped with pneumatic lifting function. If there are no special requirements, the lifting stroke is 6mm, and the stroke is fixed and cannot be adjusted. If you need other lifting strokes, please confirm the stroke when ordering, and the maximum cannot exceed 12mm.

Model specifications: (If the robotic arm is non-standard, the following table is for reference only)

Note 1: Double punch refers to producing one product with one punch press action, while single punch refers to producing one product with two punch press actions;

Note 2: When the production is not synchronized (referring to the mechanical arm moving first and the punching machine moving later), higher products can be produced,

Note 3: If the product being produced is a hexagonal cap, the diagonal of the hexagonal cap can be used for selection. When selecting, first choose the tonnage of the punch press, and then select the step distance based on the maximum product outer circle. The model can be one that is not listed in the table above, such as BTQ220-500, BTQ350-1600。

Note 4: This device is a non-standard device. If there are any changes in appearance, model, configuration, etc., the actual product shall prevail without further notice.

Note 5: Model composition: BTQ+mold spacing - punching machine tonnage, for example, BTQ250-250, refers to a step distance of 250 and 250 tons for punching machines.
